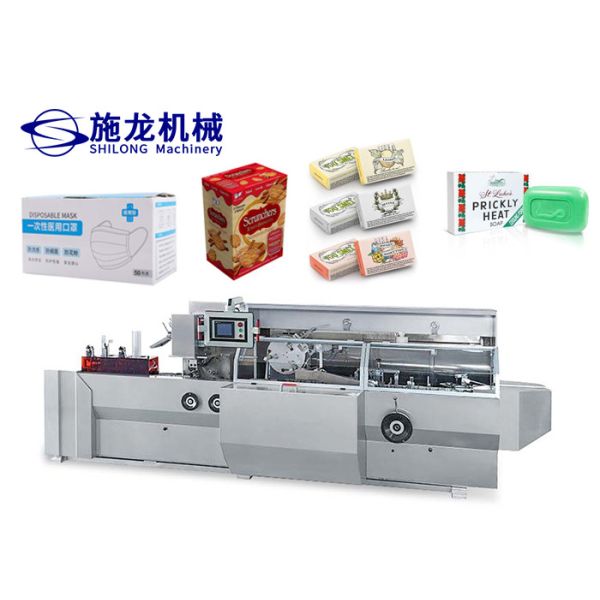

Face Mask Carton Packaging Cartoning Machine Fully Automatic
Machine introduction
This production line integrates box opening, pushing, folding ears,
folding pages, and inserting boxes. It is suitable for
multi-variety and multi-specification carton packaging machines. It
is controlled by a PLC microcomputer, with automatic alarms and
fault prompts. It has the characteristics of man-machine interface
control, simple operation and convenient maintenance. The box
sealing system has the functions of box opening, pushing, folding
ears, folding pages, and sealing boxes, etc., without the need for
human hands. The outer surface of the steel structure of the
fuselage is painted with paint, and the parts that come into
contact with the color box are all made of high-quality stainless
steel and aluminum. The surface is polished, and the appearance is
beautiful and generous, and does not pollute the environment.
Performance characteristics
1. Using PLC microcomputer fully automatic control.
2. The man-machine interface operating system is adopted to
automatically display the performance parameters such as the
packing speed, quantity, failure reason, etc.
3. Use self-lubricating system to run more smoothly.
4. The body is made of high-quality stainless steel, painted and
combined with aluminum
5. The adjustment and use of multiple specifications can be
realized within the specified range in the same equipment.
6. Manual and automatic conversion function.
Cartoning Packaging Machine Specification
Production capacity | 30-200 (boxes/min) |
Maximum carton size | 200 * 80 * 70 MM |
Minimum carton size | 65 * 25 * 18 MM |
Maximum specification size (length×width) | 260 * 180 |
Minimum specification size (length×width) | 110 * 100 |
Carton quality | 250 - 300 / m2 |
Specification quality | 55 - 65 / m2 |
Air consumption | ≥ 5m3/h |
Total power | 4.1kw |
Power supply | 380V 50HZ |
Dimensions | 4500 * 1500 * 1700 |
Weight (kg) | 3500 |
